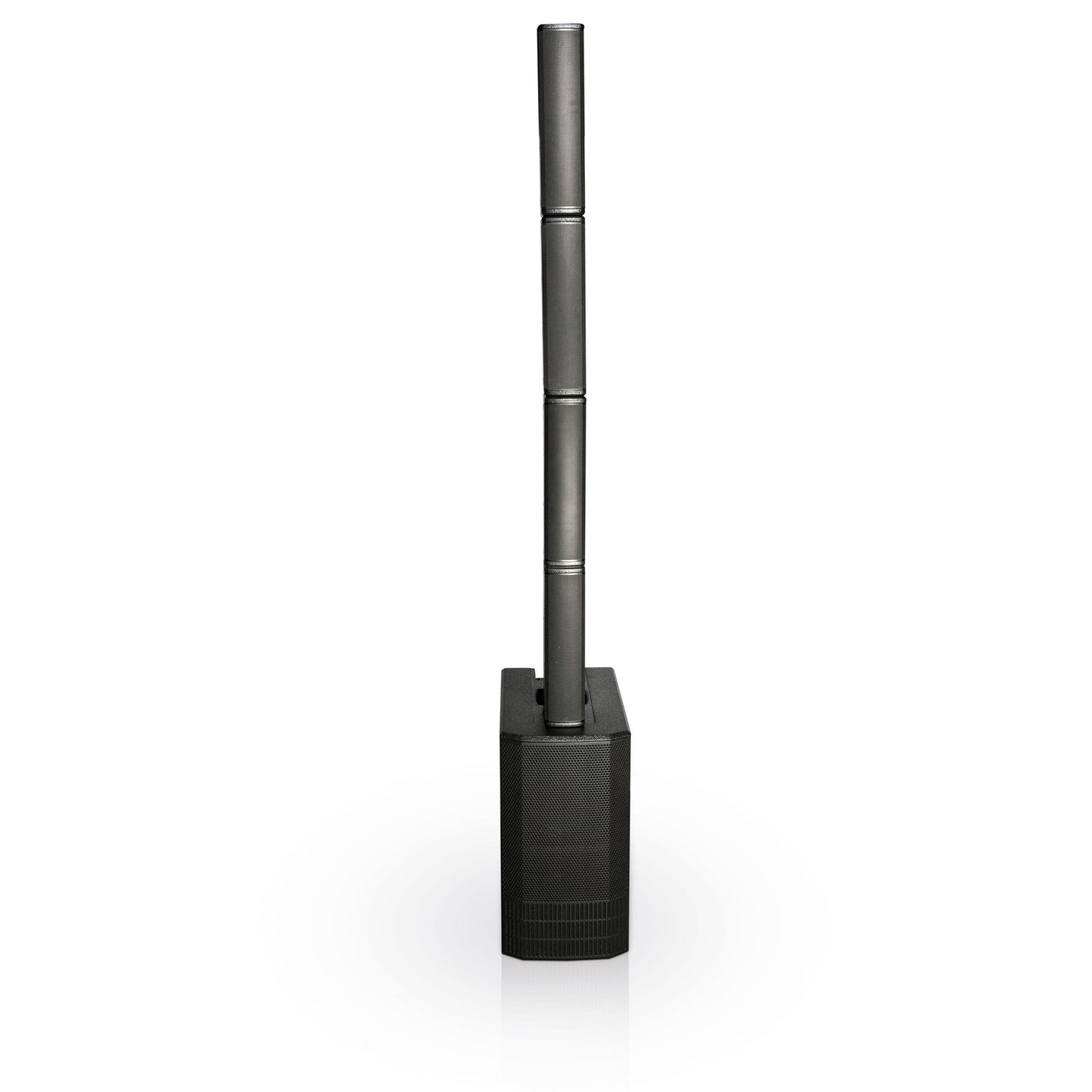

dB Technologies ES 1203

31.806,00 NOK
31.806,00 NOK
Salg Utsolgt
Inkludert 25% moms. Frakt beregnes ved kassen.
Få på lager - varer på vei inn.
  • Gratis frakt over 3000,-
  • 14-dagers retur
  • Support
  • Trygg handel

Om produktet

ES 1203

Høyttalertype: 3-forsterkers aktivt stereosystem med to fulltonekasser og basskasse.
  • BAG FOR SUB AND TOPS INCLUDED
  • TRI-AMPED ACTIVE STEREO PA SYSTEM
  • 2400 W POWER
  • LATEST GENERATION DIGIPRO G4 AMP TECHNOLOGY
  • USER-FRIENDLY DSP INTERFACE
  • 3 CONFIGURATION MODES (MONO, STEREO OR DOUBLE COLUMN)
  • ON-BOARD 5 CHANNEL MIXER
  • BLUETOOTH® AUDIO RECEIVER
  • 3 INPUT CHANNEL MODES (MIC/INSTR/LINE)
  • CUSTOMIZABLE BALANCED OUTPUT CHANNEL (MIX/MONITOR/AUX)
  • ULTRA WIDE COVERAGE

(Obs illustrassjonsbildet avviker fra pakkens innhold)
Vi anbefaler kjøp av høyttalerstsativ med  fra K&M 21450 eller 214/635 mm rør dersom stativ ønskes slik som avbildet.

Technical Data:


Acoustical data
Frequency Response [-10dB]: 35 - 20.000 Hz
Max SPL: 132 dB
MF - HF 8x4", v.c. 1"
Type MF - HF: Neodymium
LF: 2X12"
Directivity 97x60°
Amplifier
Amp Technology Digipro® G4
Amp Class Class-D
Power Amp Peak 2400 W

Controls
1x OLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1x USB port (service data)

Power Supply : Fullarange with PFC
Power connection: VDE Socket
Cooling Convection

Processor:
Controller: DSP 56 Bit
Converter AD/DA: 24 Bit/48 Hz
Limiter: Peak, RMS, Thermal
Crossover Frequency LF-MF: 160 Hz
Digital Steering Up/Down/Far

Input Channels:
1x Mic/Instrument Combo (XLR/Jack)
2x Mic/Line Combo (XLR/Jack)
1x Bluetooth built-in receiver

Mix Output:
1x XLR balanced output

Mechanics:
Housing (Subwoofer) Plywood with full metal grille
Housing (Tops) Plywood with full metal grille
Pole Mount: 36 mm (M20 Thread)
Handles (subwoofer) 1x top, 1x lateral side
Width (Top): 110 mm
Height (Top): 460 mm
Depth (Top): 160 mm
Width (Subwoofer): 360 mm
Height (Subwoofer): 680 mm
Depth (Subwoofer): 545 mm
Weight (Top) 3.3 Kg
Weight (Subwoofer) 29.3 Kg
Vis alle detaljer
